3H Project Tour|SLAN Center Business Landmark

"City Light · 3H Glory"   2020 Project Cases

Every city,

Unique charm due to unique architecture;

Attractive building,

Is given life because of the integration of 3H

The project introduced today is the SLAN Center Business Landmark. SLAN Center Business Landmark is located in the core area of CBD of Jinye Road, Xi'an High-tech Zone. It occupies an area of 16.5 acres, with a total construction area of 133,500, and a total investment of about 2 billion yuan. It is built by China Railway Precision Industry Co., Ltd., one of the world ’s top 500 companies, the first Asian construction company, and the 150th Luban Award winner.SLAN Center Business Landmark is the masterpiece after the Qinghai-Tibet Railway and Palm Island the 8th wonder in the world.

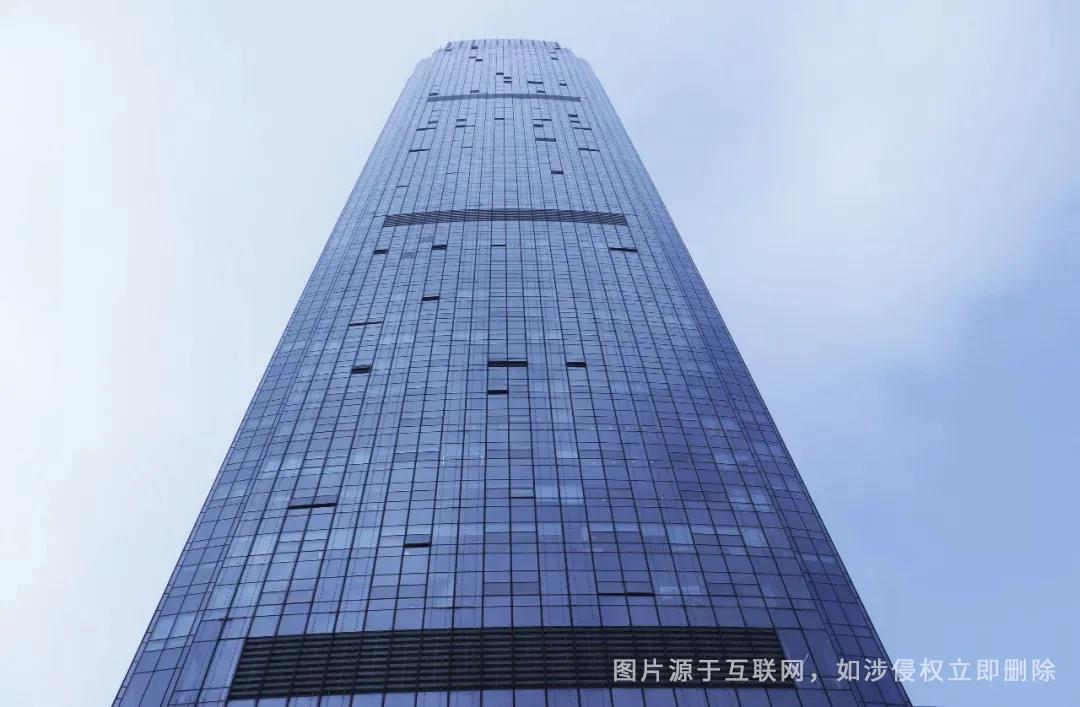

SLAN Center Business Landmark stands as a 230-meter high-rise skyscraper business landmark in the center of Xi'an. It is the only four-corner pillar-free 270 °viewing office in the area. It is understood that while integrating global high-quality resources and building a world-renowned enterprise industry platform, China Railway Real Estate Group is the first to introduce the international "garden office" ecological concept. The full low-e double-layer hollow tempered glass ecological curtain wall is not blocked by sunlight, and the curtain wall has a low reflection ratio at about 0.3. The ratio of underground buildings to building area is as high as 238%, which effectively saves land. It uses vertical greening to save land and increase greening.

The curtain wall program of this project is built by Wuhan Lingyun Building Decoration Engineering Co., Ltd. Wuhan Lingyun has continued to lead the industry in the fields of curtain wall doors and windows development, design, and construction, and has more detailed and strict requirements for the selection of hardware accessories.As a modern door, window and curtain wall construction hardware manufacturing enterprise with nearly 40 years of development and precipitation, 3H’s green intelligence and environmental protection concepts are highly consistent with this project, and the product development, quality control, logistics and after-sales service are highly recognized by top 100 real estate enterprise.This cooperation can be described as a strong alliance.

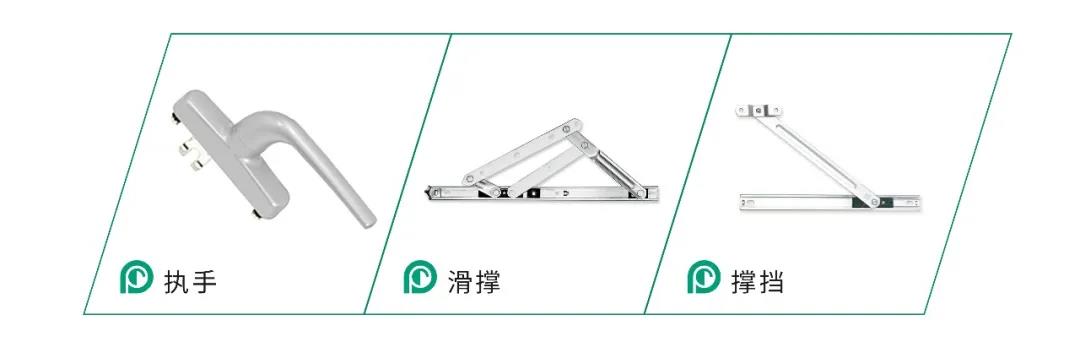

This project uses the CZH26 handle, CG32A-600 aluminum connecting rob with European groove, CKG03 lock seat, HHKX14 friction stay, DK10 limiter stay and other products.

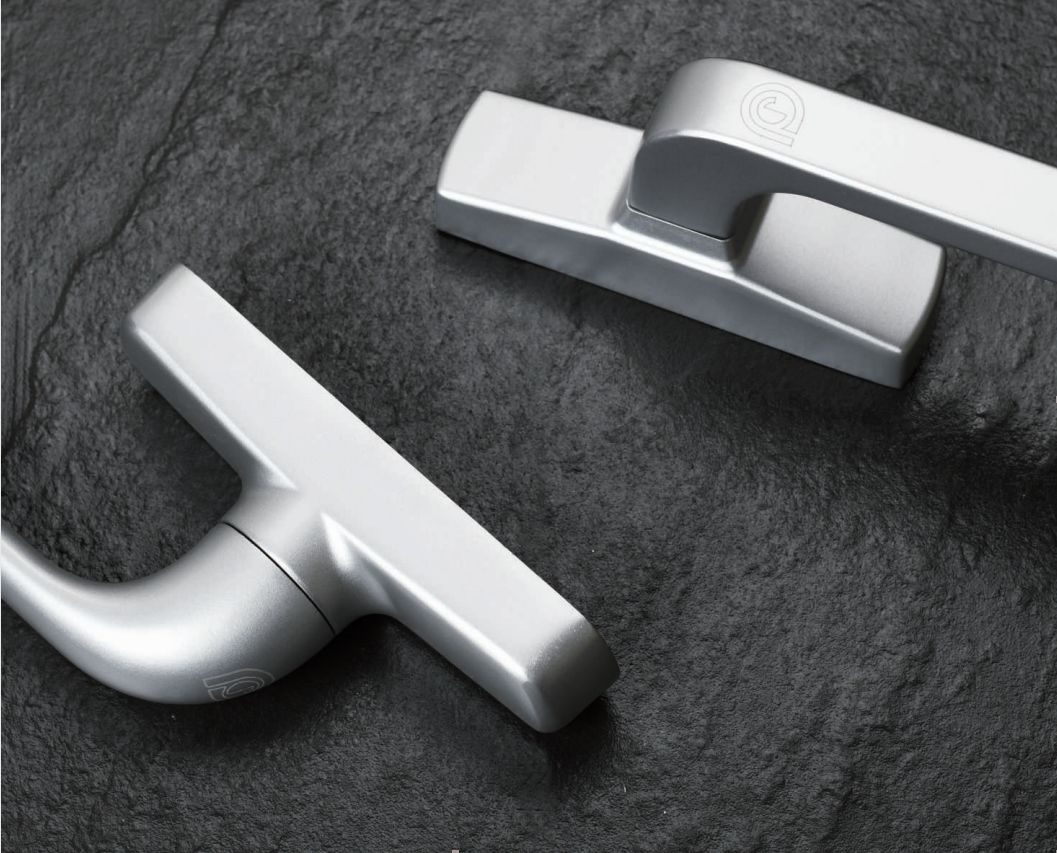

Handle used as the transmission mechanism

Main performance indicators:

1. Implementation standard: JG / T 124-2017

2. 25,000 opening and closing cycles repeatedly.

3. No-load operating force is not larger than 40N, and the operating torque is not larger than 2N · m.

4. The parts of handle have no damage under the action of 25N · m ,and the angle deviation of the center line of the handle is less than 5 °

It is suitable for all casement windows, indoor sliding doors and top-hung windows in homes, offices and commercial buildings.

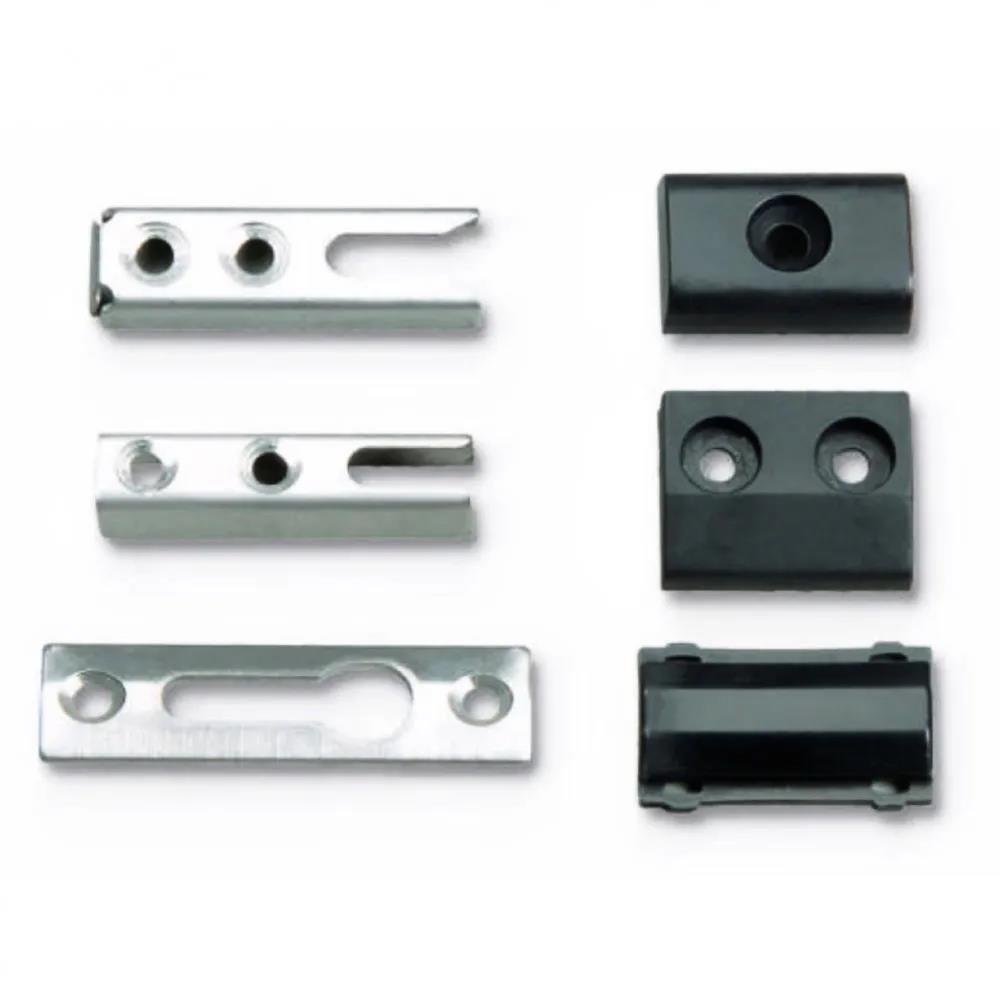

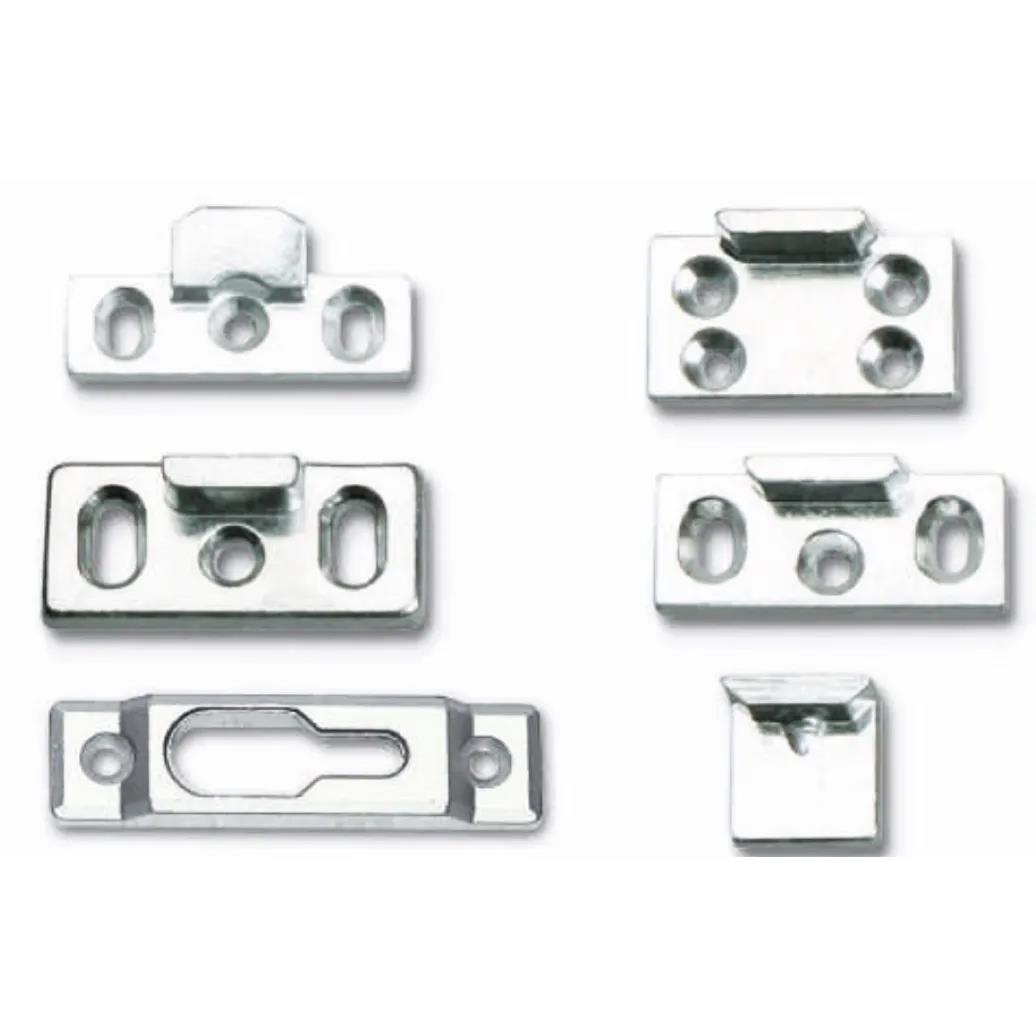

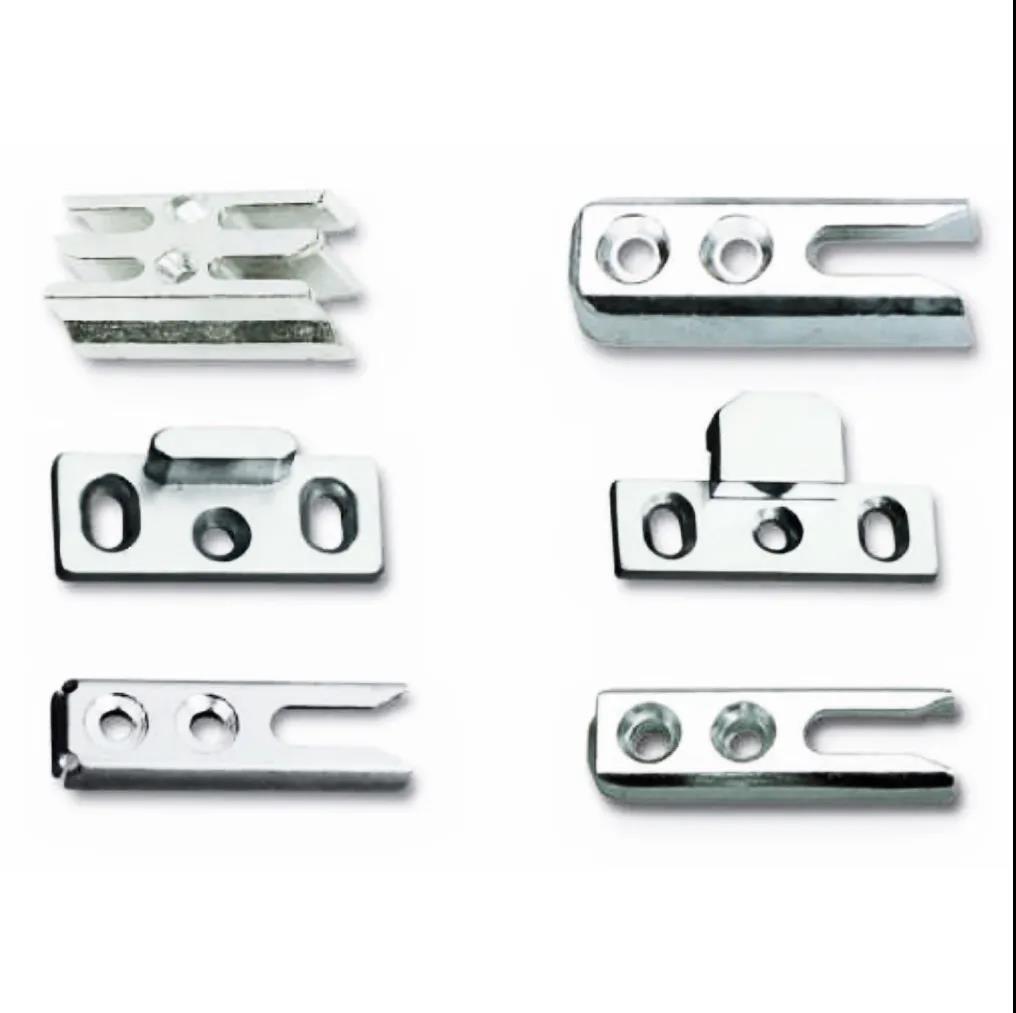

Multi-points lock seat series

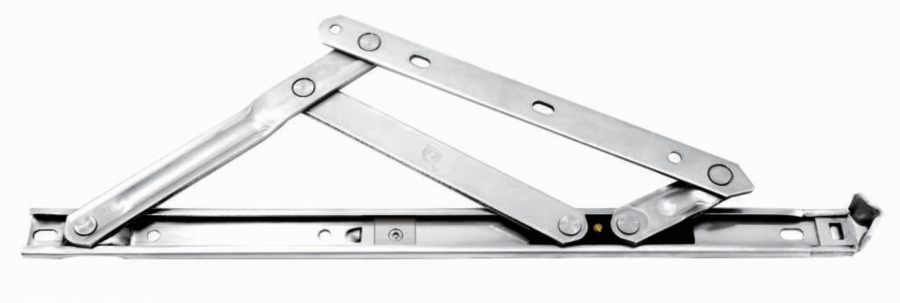

HHKX series friction stay

1. Made of high quality 304 stainless steel.

2. It can be used alone in the top-hung window, and it needs to increase the limiter support when it is used in heavy windows.

3. The friction stay should give priority to the connection strength with the profile, and its connection force should be larger than the load-bearing level.

4. Select specifications of friction stay, which must meet the window weight and window size.

5. The opening distance of the hang window must be within 300mm.

In this ancient capital that has witnessed the development and change of the history of our nation, SLAN Center Business Landmark carries the glory and dreams of the city. It embodies the wisdom and sweat of all the builders, and 3H uses the quality to give project the life and glory!
