JG/T176-2007 Standard
4. Size of the inward casement door profile

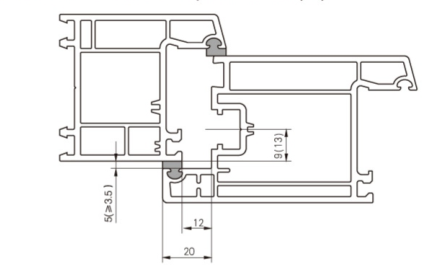

A. 20/12/9(13) Size of profile 20/12/9(13)

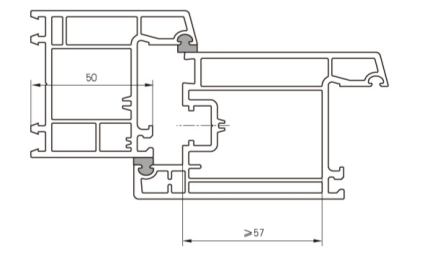

B. Size of installation structure

5. Size of outward casement door’s profile

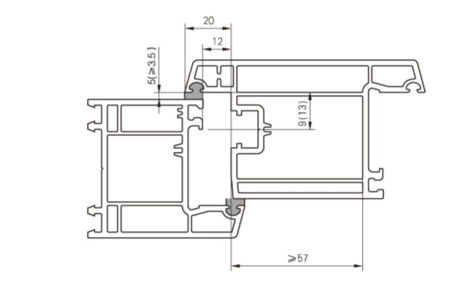

A. 20/12/9(13) Size of profile 20/12/9(13)

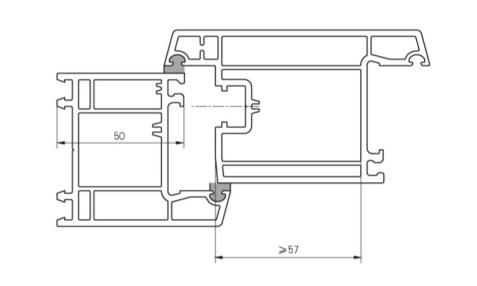

B. Size of Installation structure

Instruction for profile’s size
1. (20=12+8) 12 is for the hinge space, 8 is the overlap amount of sash and frame.
2. 9 is 9 series. 13 is 13 series.
3. 3(3.5) is the size after compressed sealed gasket, also called hinge channel, 3 or 3.5.
4. Size >57 is the installation space of inward casement door’s transmission device.
5. Methods to distinguish the inward and outward casement door.
A. Glazing gasket is in the indoors.
B. Model Z is inward casement door, Model Z is outward casement door.
6. The frame of the inward and outward door is the same. The size of the sashes is also the same, but the shape of profile is different because of the difference of gasket’s direction.

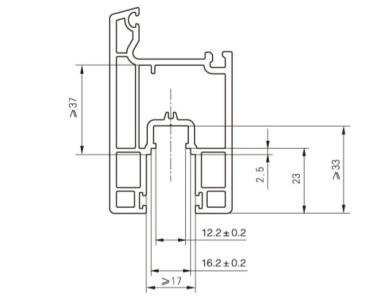

6. Size of slide door’s transmission device and roller’s groove

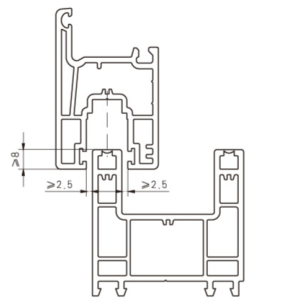

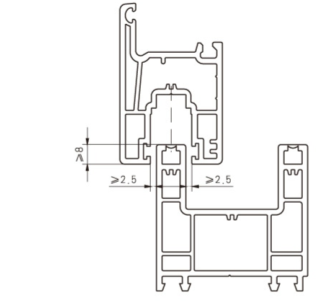

7. Size of sliding window profile

8. Size of slide window’s transimission device  and roller’s groove

9. Woodern package aluminum within Casement Windows profile feature size

10. Aluminum-clad wood within Casement Windows profile
