3H Project Tour|National Speed Skating Stadium

"City Light · 3H Glory"   2020 Project Cases

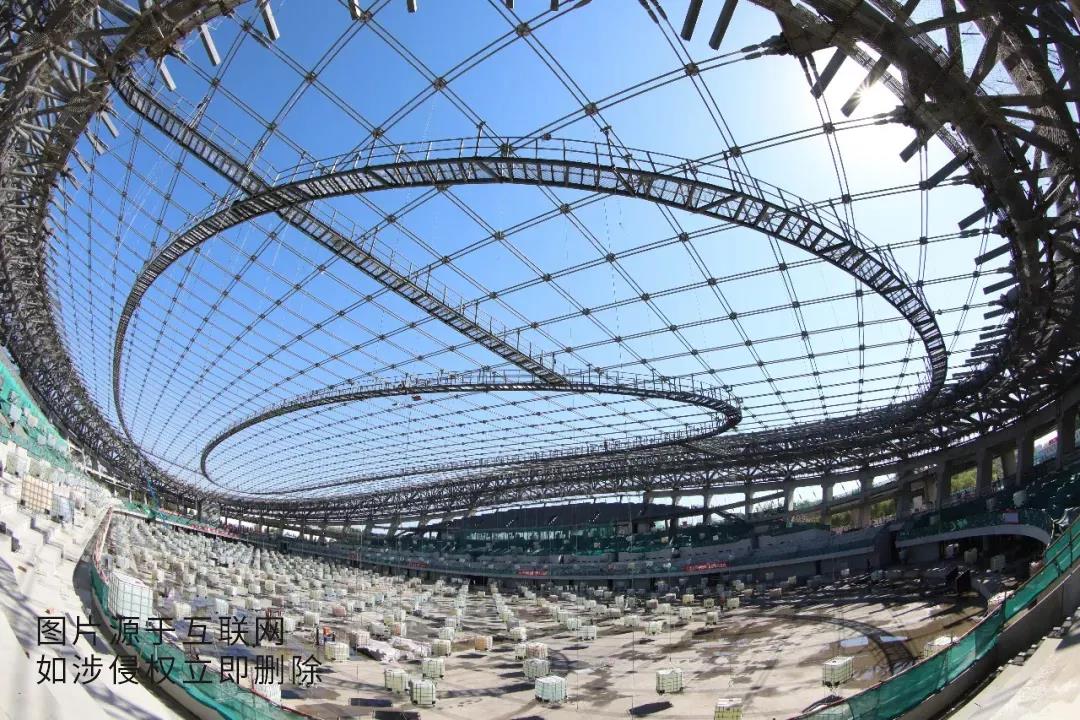

The National Speed Skating Stadium, also known as the "Ice Ribbon", is located on the west side of Beijing Olympic Park and south of the National Tennis Center. The venue is about 220 meters long from north to south and 160 meters wide from east to west. It is divided into 4 floors above ground and 2 underground floors, with a total construction area of about 80,000 square meters. The venue is equipped with a 400-meter slide and about 12,000 spectator seats. It is a multifunctional ice sports center that integrates sports events, mass fitness, cultural leisure, exhibitions, and social welfare.

The “Ice Ribbon” of the National Speed Skating Stadium, the “Bird's Nest” of the National Stadium, and the “Water Cube” of the National Swimming Center together form the world's first “Bi Olympic City” landmark building group.

The facade of the National Speed Skating Stadium is assembled by 3360 curved glass units, each of which has a different curved arc. At the same time, there are 22 “ice ribbons” that circle around the curtain wall, and they seem to dance around, symbolizing the "ice ribbon" of the Beijing Winter Olympics is interwoven into a cocoon, and a new generation of Olympic stars will emerge from it in 2020.

Every athlete on the field is a unique and shining star with a mission. They are tough, tenacious, united, and hard-working. The high-intensity training is just to challenge themselves and fight hard in the arena. The physical and mental condition of each athlete will directly affect the performance. A scientific layout, a well-ventilated and fully functional lounge becomes crucial.

As the main venue of the Winter Olympics, the general contractor Beijing Urban Construction Group has extremely strict requirements for this project. In order to create a scientific, reasonable and comfortable resting space for athletes, it is even better in the selection of construction hardware accessories. 3H has won high recognition from the general contractor for its high-quality products and excellent services. In this project, 3H manual box-type chain window opener and floor spring hardware are selected.

3H Manual Box-type Chain Window Opener

The manual window opener has a solid and reliable structure, is economical and practical, and is widely used in various ventilation fields. It is suitable for various types of windows such as top hung and tilt and turn windows.

The type of manual window opener

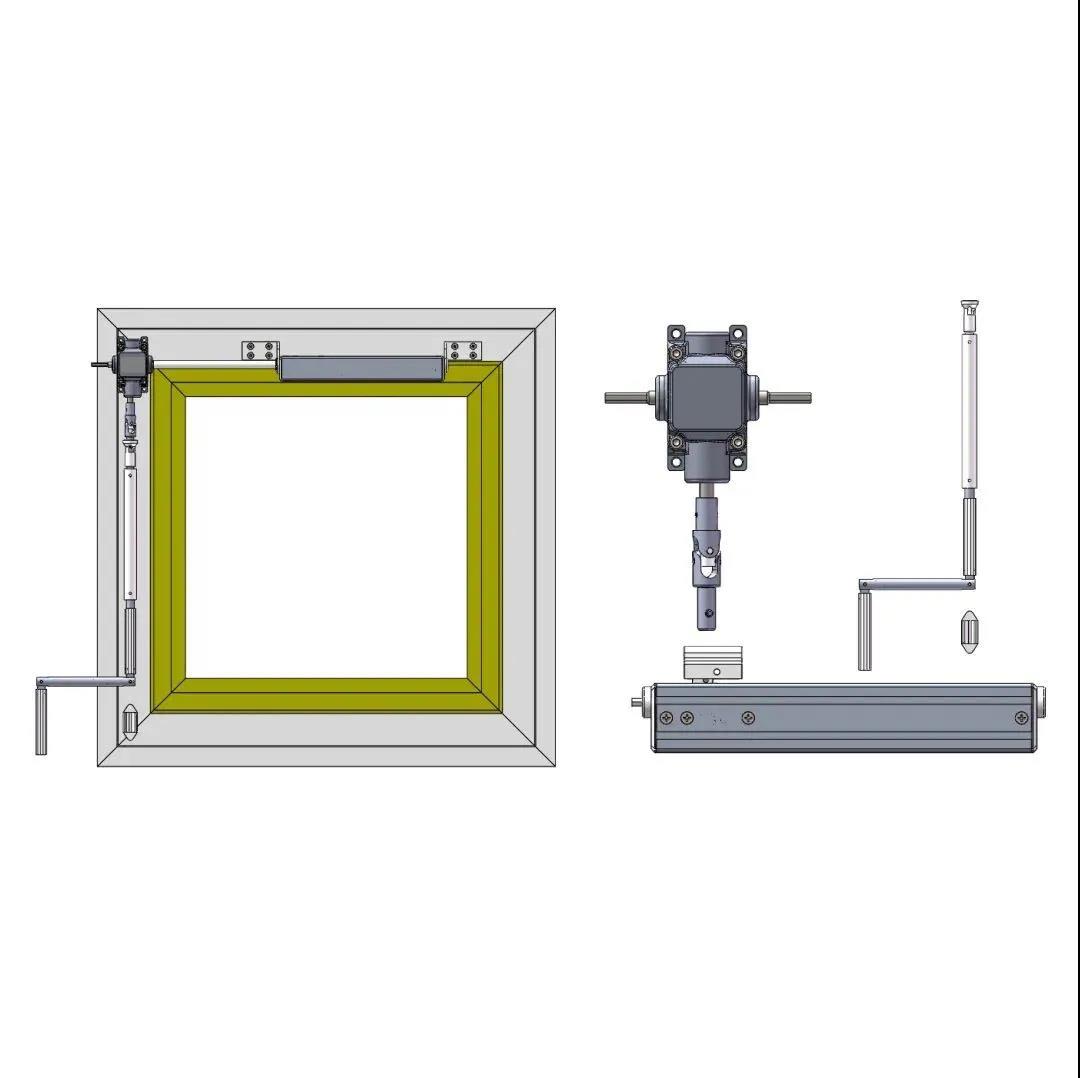

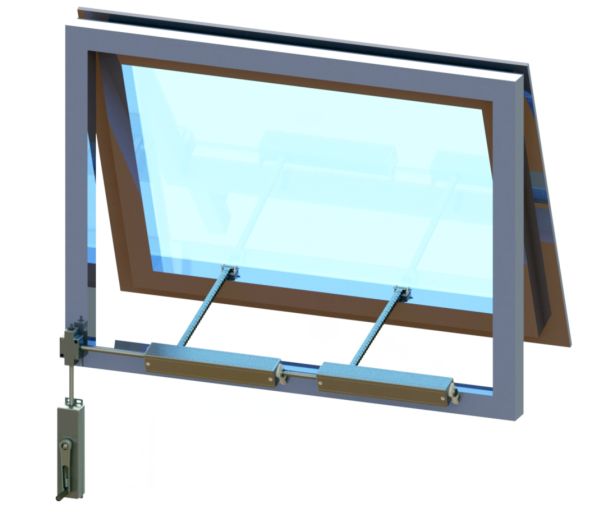

Manual box chain window opener

Manual rocker chain window opener

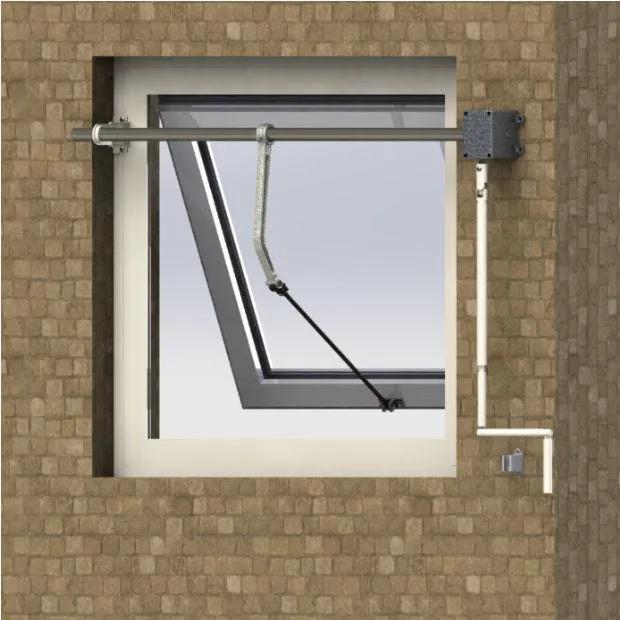

Manual rocker cranked arm window opener

The appearance of manual chain-type window opener is exquisite, and the installation applicability is stronger. The manual crank-type window opener can control multiple high-height windows and save costs.

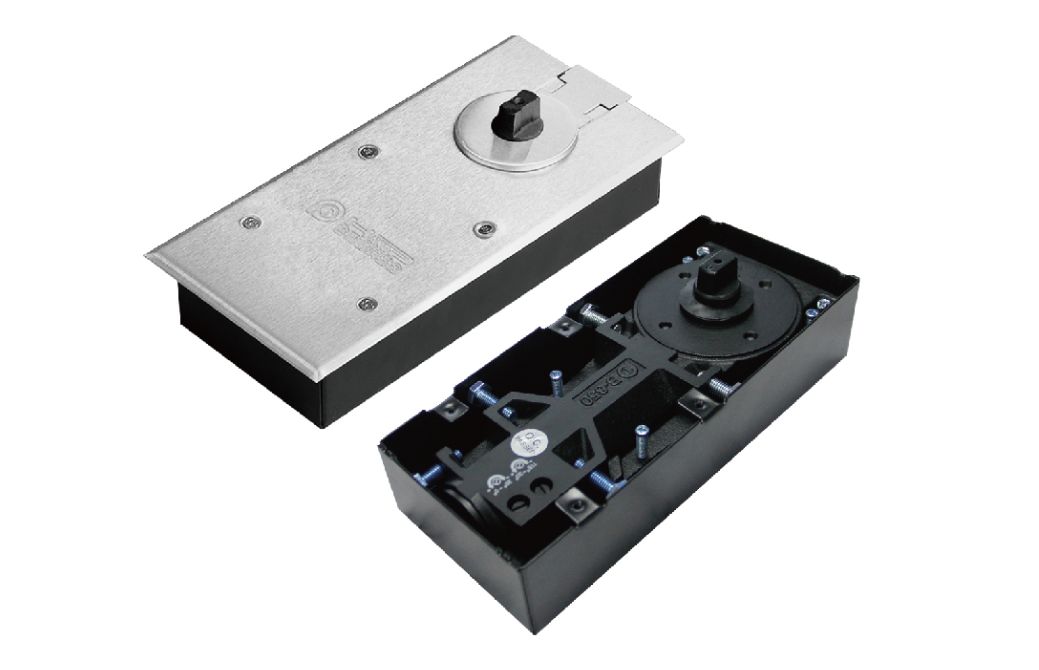

Floor spring product structure

B-650

● Host castings are provided by Taiwan-owned enterprises with decades of experience in die casting.

● The main combination parts are all forged with CR + MO alloy steel, tempered and quenched and heat treated. After grinding, all parts are immersed in high-quality and low-temperature resistant hydraulic oil. They are used normally at temperatures of -20 ° C to + 40 ° C. .

● The built-in pressure reducing valve enables the host to be protected from damage or oil leakage under strong external pressure or strong wind.

● Accurate fixed-point performance, whether it is outward or inward, can be positioned at 0 °. When the door is opened to 90 °, it will be accurately and automatically positioned.

● After the product has been operated for 500,000 times, it has been identified by the State Technical Supervision Department, and its quality is stable and normal, and it meets the technical standards.

After nearly 40 years of precipitation and development, 3H has always insisted on serving the building doors, windows, and curtain walls with the quality of “National Craftsmanship”,and 3H is honored to join with the builders to create a world-class boutique project.

The light of the city is about to rise.

In the future,3H will adhere to the business philosophy of “win-win cooperation and harmonious development”, and work together to create more urban landmark projects, helping Beijing to present the world with unparalleled exciting events again!
