  • 3H INC.:The new elegant door control hardware is coming



    Its innate nobility,Free from vulgarity,

    But with the charming terperament,

    To let everyone falls in love at the first sight;

    Its innate elegance,Simpleness and genersity,

    But with the full connotation,

    To  break itself constantly.



    553c90d017668e71


    It’s the new products of 3H door control series,which is highly innovation and special charms to impress everyone.Behind this shining and dazzling perfomance,there are many surprises that have made great achievements since they were born.Our cooperating serial hotels are the witness of their strength and praise,such as the CCINN,JTOUR INN,ECHARM INN,ECHENG HOTEL,BORRMAN,ECHARM PLUS,etc..

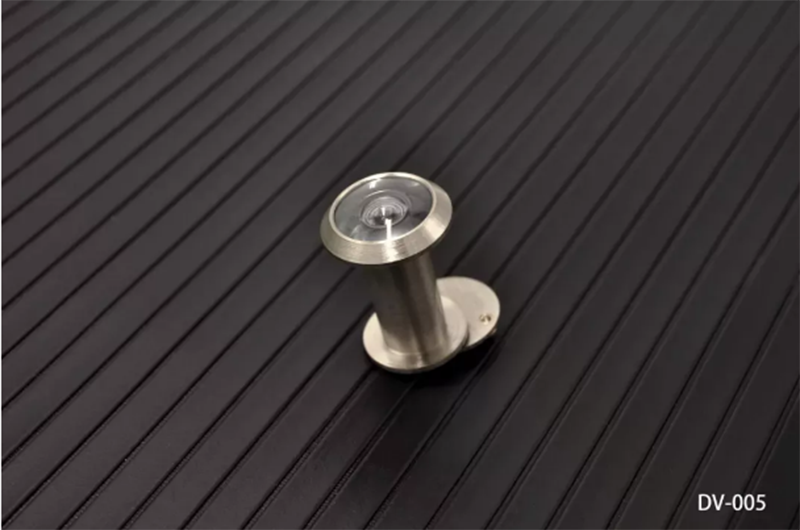

    3H---Anti-theft door eye DV-005

    Material:copper

    Surface treatment:NIckle,Gloss,Rose Gold

    Suitable door thickness:35-55mm

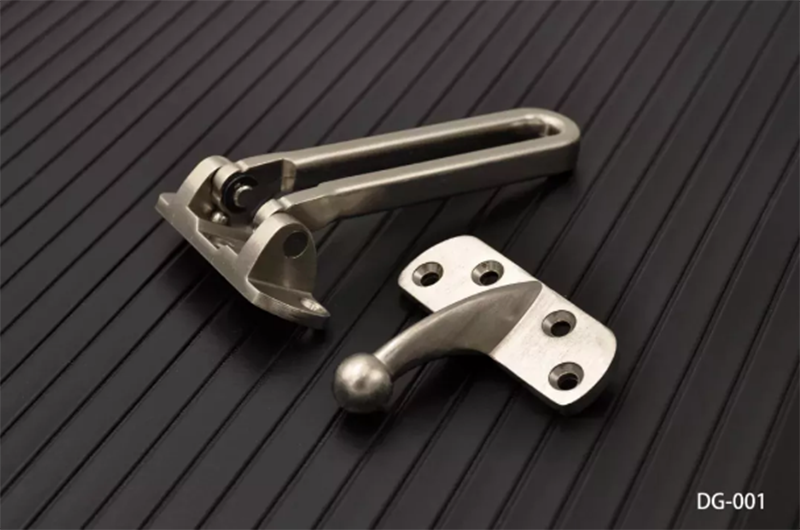

    3H---Anti-theft door buckle DG-001

    Material:304 SS,Zinc alloy

    Surface treatment:Wiredrawing,Gloss,Rose Gold

    Suitable door sash size:63*56mm

    Suitable door frame size:63*108mm

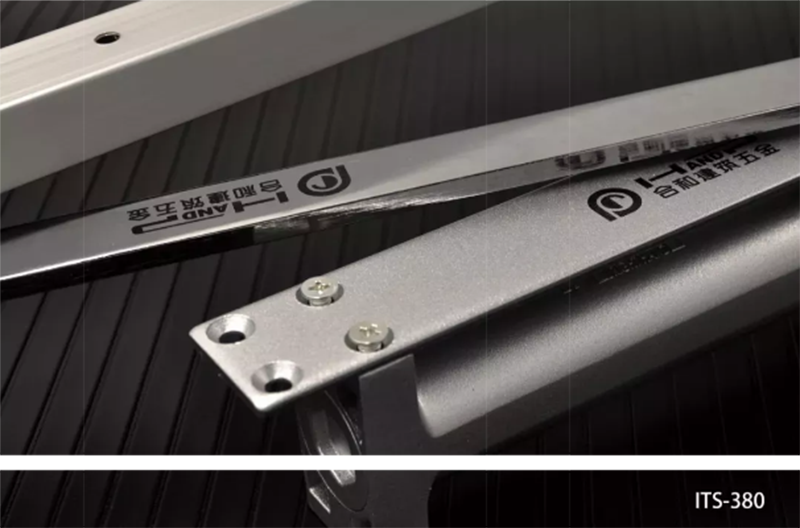

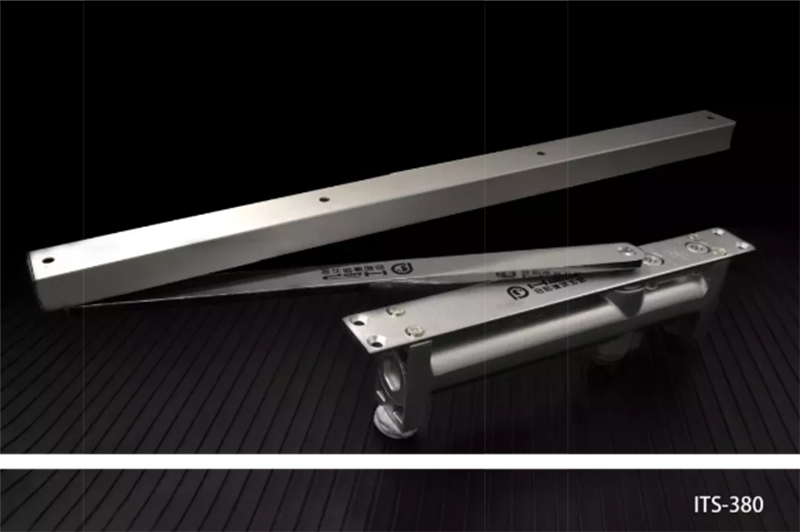

    3H---Concealed door closer ITS-380

    Color:Silver gray(sliding track arm is included)

    Main body size:230*60*32mm

    Sliding track size:460*30*27mm

    Opening door angle:180°

    Product weight:1.92KG

    Meet the requirement of European standard 500000 tiems service life

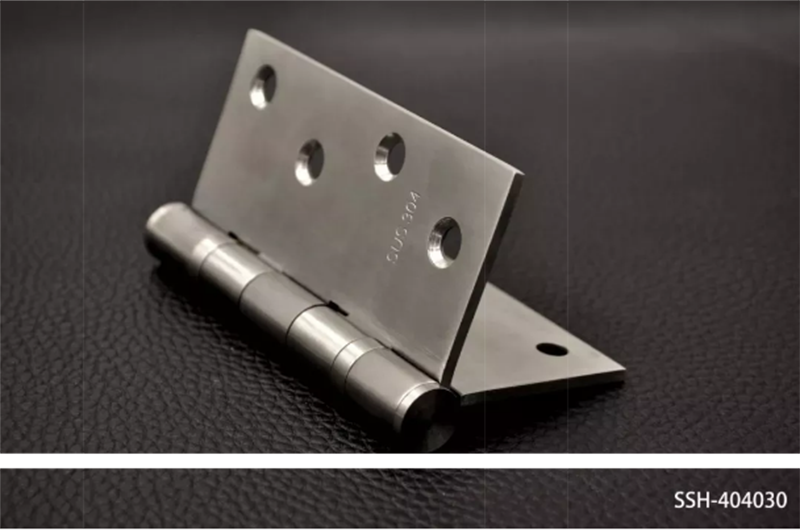

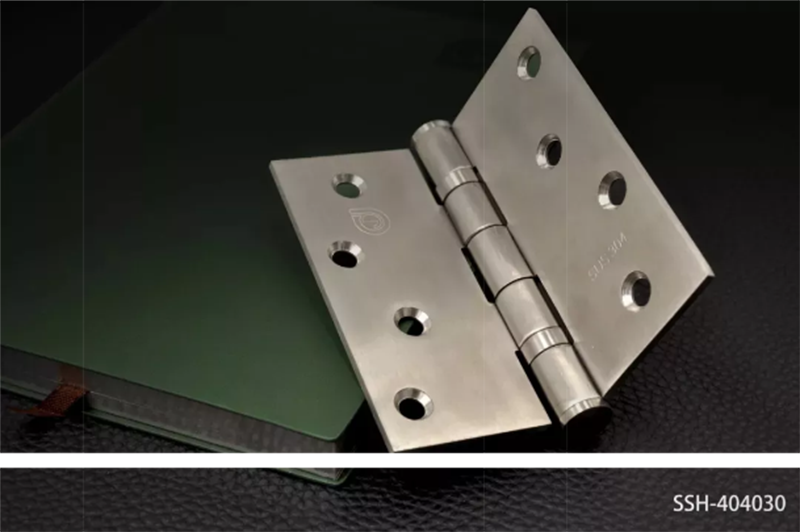

    3H---Oiled European standard hinge SSH-404030

    Material:304 stainless steel

    Surface treatment:Wiredrawing,Gloss,Rose Gold

    Product size:4*4*3mm

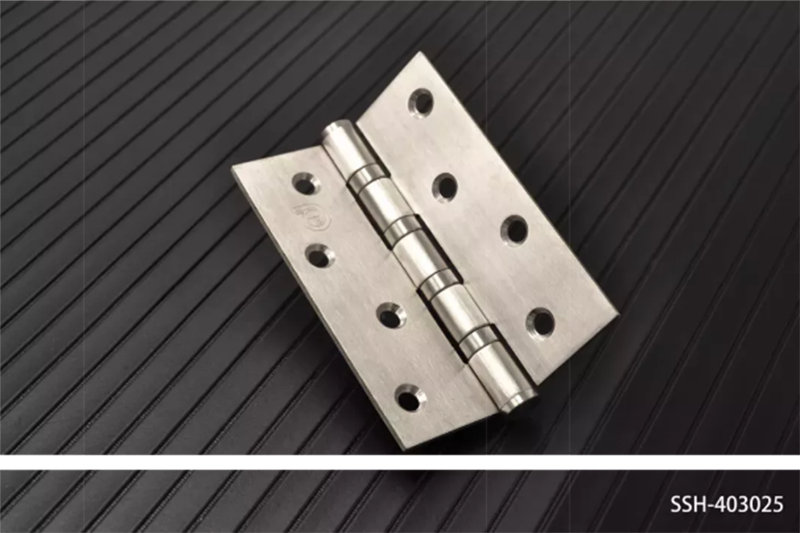

    3H---Oiled European standard hinge SSH-403025

    Material:304 stainless steel

    Surface treatment:Wiredrawing,Gloss,Rose Gold

    Product size:4*4*2.5mm

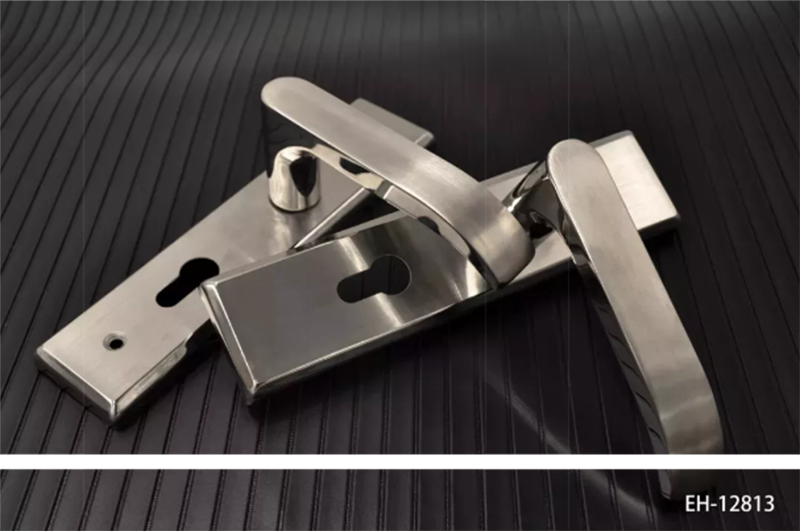

    3H---Conjoined stainless steel door handle EH-12813(right/left version)

    Material:304 stainless steel

    Square shaft size:8mm,

    Length of lock body and handle plate:58mm

    Note:conjoined,right and left version




    2_1

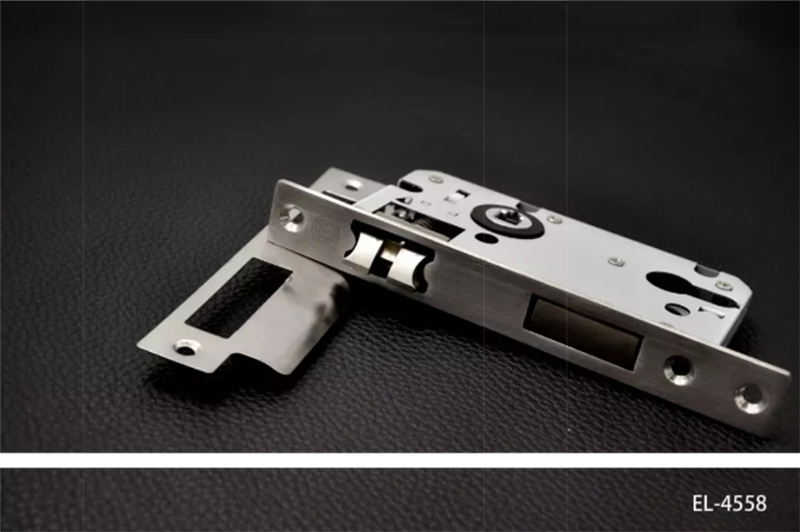

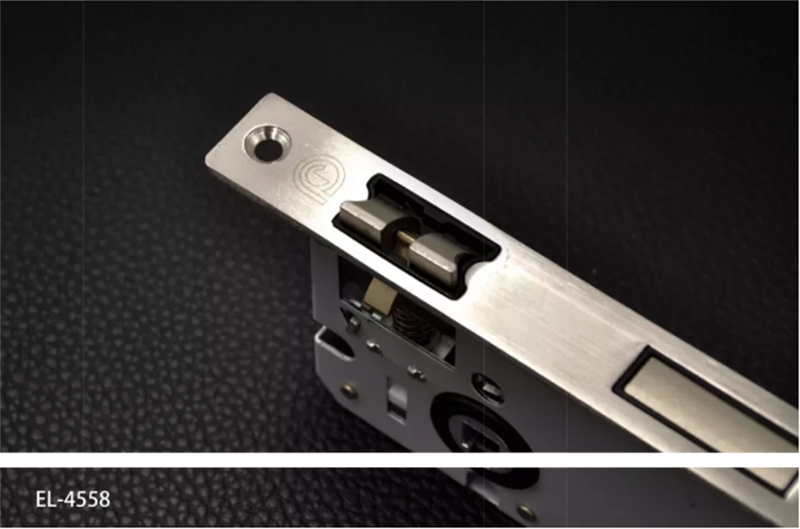

    3H---4558 standardized lock body

    Pitch:58mm,

    Gauge distance:45mm,

    Square plate width:22mm,

    Door thickness:45-55mm(flat door)

    图片11_1

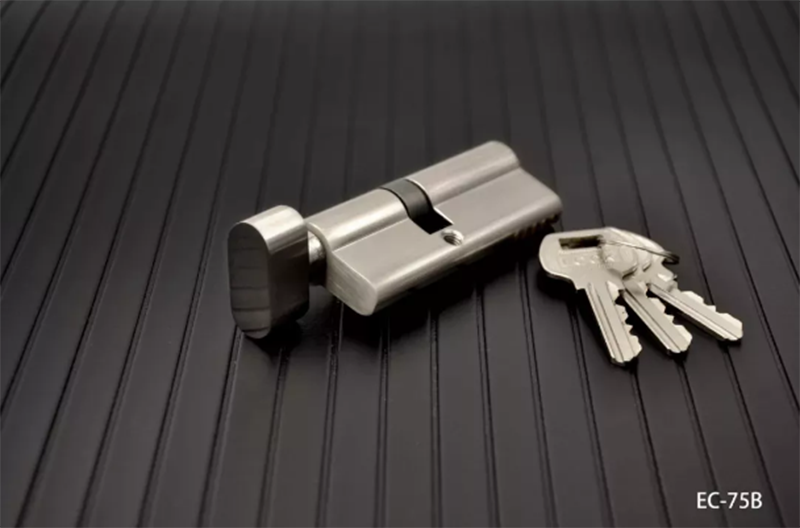

    3H---Cylinder  EL-75B

    Material:aluminum+copper

    Note:single-opening/oral knob

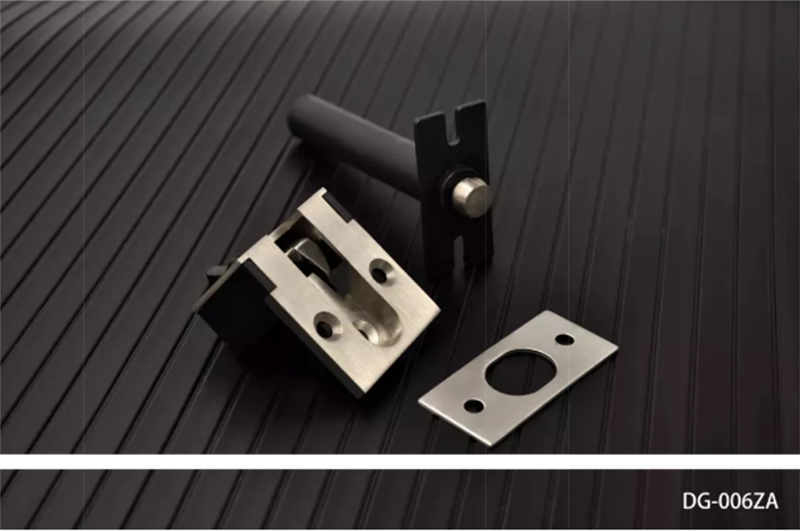

    3H---Concealed anti-theft chain

    Material:304 stainless steel,zinc alloy

    Surface treatment:precision casting,sanding(iron chain is included)

    Color:Natrual

    Suitable door sash size:92mm long,25.4mm wide,57.5mm high,

    Suitable door frame size:50mm long,43mm wide





    3H---Anti-theft chain

    Material:304 stainless steel,zinc alloy,

    Surface treatment:Sanding

    Suitable door sash size:130mm long,35mm wide,

    Suitable door frame size:80mm long,23mm wide

    The new door control serial product is the product combined with the advanced technology and specialized process.Also,with the raw material in high quality and strict producing process,and strict test,the products are showing the quality of life.



    Projects


    Atlantis Hotel


    Weihai Hotel

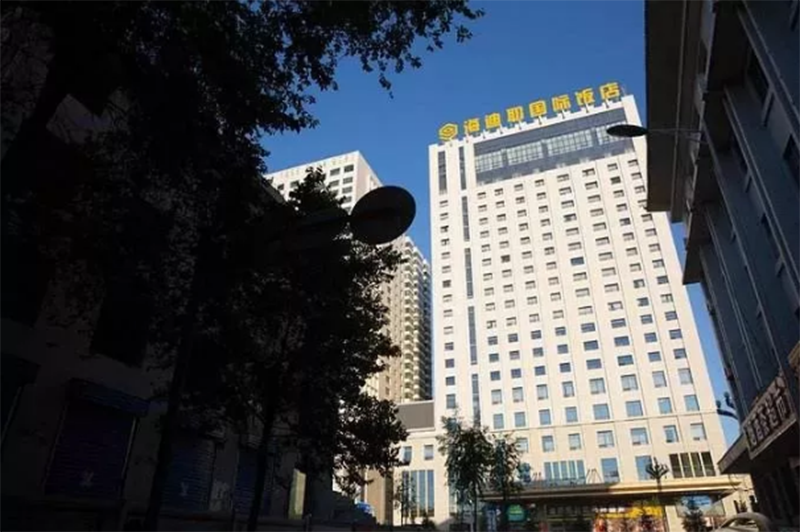

    Haidiye International Hotel


    Wuxi ECHARM plus Hotel


    Penglai Le Fort


    Nanjing Cuipingchengyuan
